Product Features
Core
Prime Series panels use Owens Corning 707 fiberglass as the sound absorbing substrate — a 6-7 pcf (pounds per cubic foot) density board with superior surface smoothness, sharp edge detail, and dimensional stability.
Recycled Content
Prime Series panels use the Owens Corning 707 fiberglass board core that is eligible to bear the Green Cross label for recycled content. 707 is certified on average to contain at least 35% recycled glass, with 9% post-consumer, and 26% preconsumer content.
Edge Details
All edges are resin hardened, unless otherwise requested. Edges can be square
or beveled. Beveling options are many, including full reverse mitering for corners.
Materials sourced in the USA.
Technical Details
Fire Rating
All components of the Prime Series panels conform to ASTM E84 and are rated Class I/A.
Acoustical Performance
| Thickness |
NRC |
| 1″ |
.80 |
| 1 1/2″ |
.95 |
| 2″ |
1.10 |
| 3″ |
1.10 |
| 4″ |
1.15 |
Warranty
Prime Series panels are warranted to be free from defects in material and workmanship for 2 years from date of purchase.
Mounting

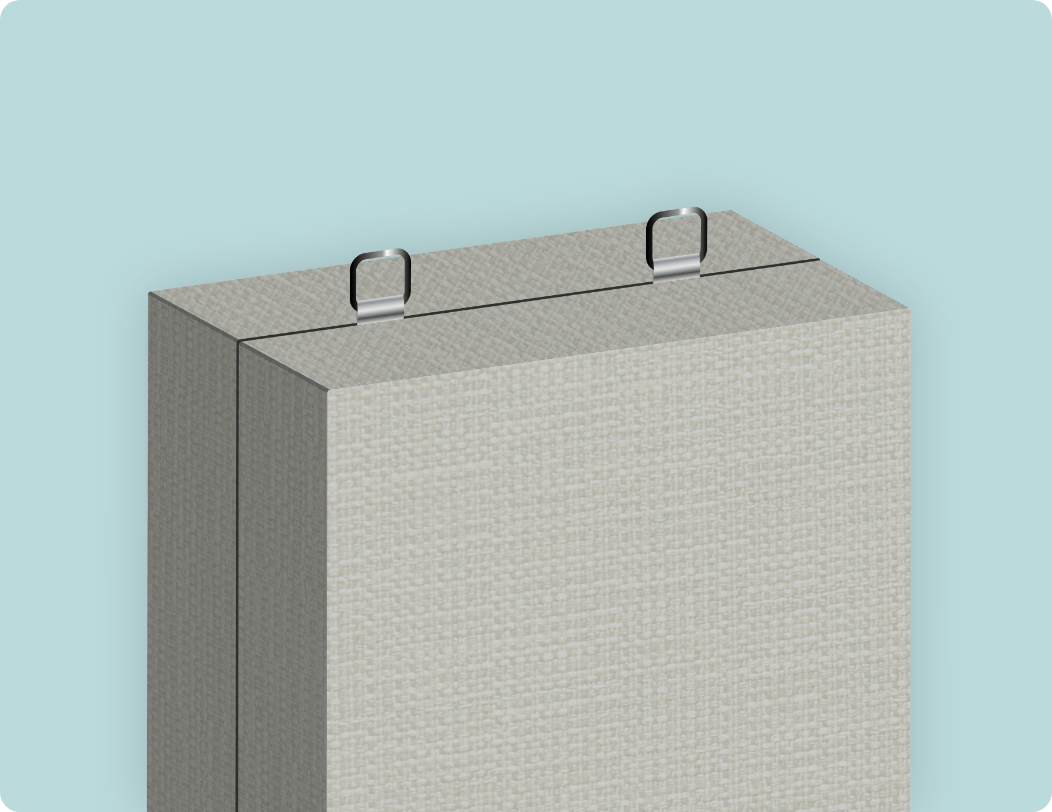

Standard mountings include impaling clips with perimeter adhesive, Z-clips, and wall bars. Standard ceiling mountings include wall bar to wall bar or lay-in. Cloud mounting is accomplished with acoustical anchors — eyelet or D-ring — embedded in resin spots on the back. A white fiberglass scrim is recommend for the backs of clouds to eliminate any possibility of airborne migration of particulates.
